Description
cartek gear indicator Cartek Gear Indicator (Club) – C Bradley MotorsportDashboard mounted Cartek Gear Indicator that's designed to indicate the current selected transmission gear but also incorporates a sequential shift light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi coloured, 7 segment numerical display while the shift light function is displayed at the upper part of the unit by 8 multi coloured LEDs. These 8 LEDs form a display sequence
Dashboard mounted Cartek Gear Indicator that's designed to indicate the current selected transmission gear but also incorporates a sequential shift-light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi-coloured, 7 segment numerical display while the shift-light function is displayed at the upper part of the unit by 8 multi-coloured LEDs. These 8 LEDs form a display sequence that will commence at an engine speed prior to optimum and complete at precisely the optimum speed thereby giving the driver early indication to shift up before the rev limiter is reached or engine damage occurs. Not suitable for engines with older CDI Ignition systems.
Features
- Configure the lower & upper RPM settings with or without the engine running. Engine only needs to be revved to 50% of max RPM if setting up with engine running, or manually input RPM values using Push Button at rear of Gear Indicator.

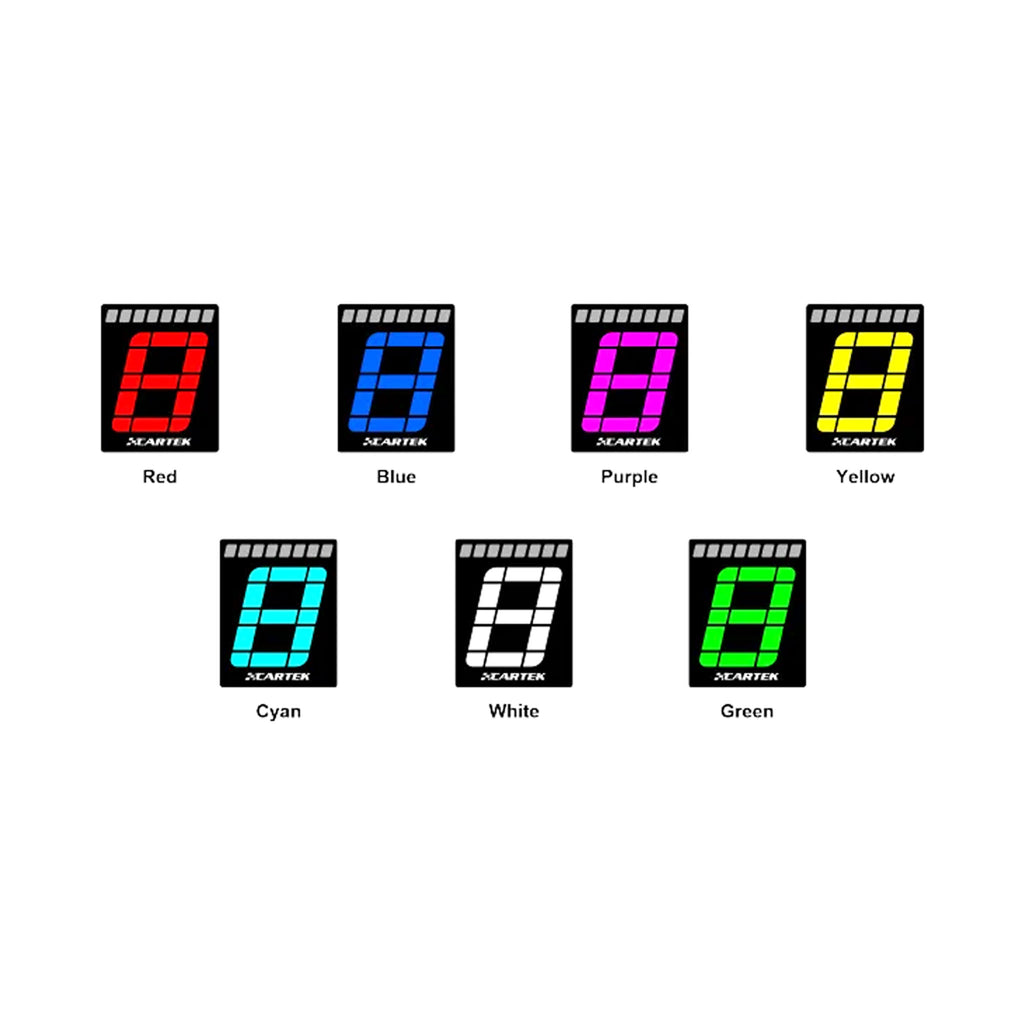

- Select from 6 LED display patterns for the Shift Light sequence and 7 Gear Indicator Digit Colours
- Configure day & night brightness of the LEDs
- Gear detection through RPM & Road speed signals, or through analogue signal input for Sequential Gearboxes.
- Fully sealed for open-cockpit cars and motorcycles.
- Additional RPM filter setting available designed for Historic applications
Specification
| Height | 62 mm |
|---|---|
| Width | 50 mm |
| Depth | 23 mm |
| Weight | 70 g |
| Operational Voltage | 7v - 18v |
| Operating Temperature | -10°C to +85°C |
| Storage temperature | -40°C to +125°C |
| Enclosure | PA 2200 Nylon fully potted. IP64 rated |
| Cable Length | 70 cm |
